Available Versions
Select from the versions listed below. The currently selected one is highlighted in color.
| Drawing | Product no. | Material / Surface | Sphere diameter | Hub | Material Sleeve | Length | Total diameter | Spring force (N) |
|---|---|---|---|---|---|---|---|---|
| 2106.2142 | Stainless steel bright | 2,5 | 0,8 | brass | 7,3 | 3 | 2-4,5 | |
| 2106.4374 | Stainless steel bright | 6 | 2 | brass | 14 | 7 | 4-12 | |
| 2106.5217 | Stainless steel bright | 2 | 0,65 | brass | 5,3 | 2,5 | 1,3-2,5 | |
| 2106.5218 | Stainless steel bright | 3 | 0,9 | brass | 9 | 4 | 2,5-7,5 | |

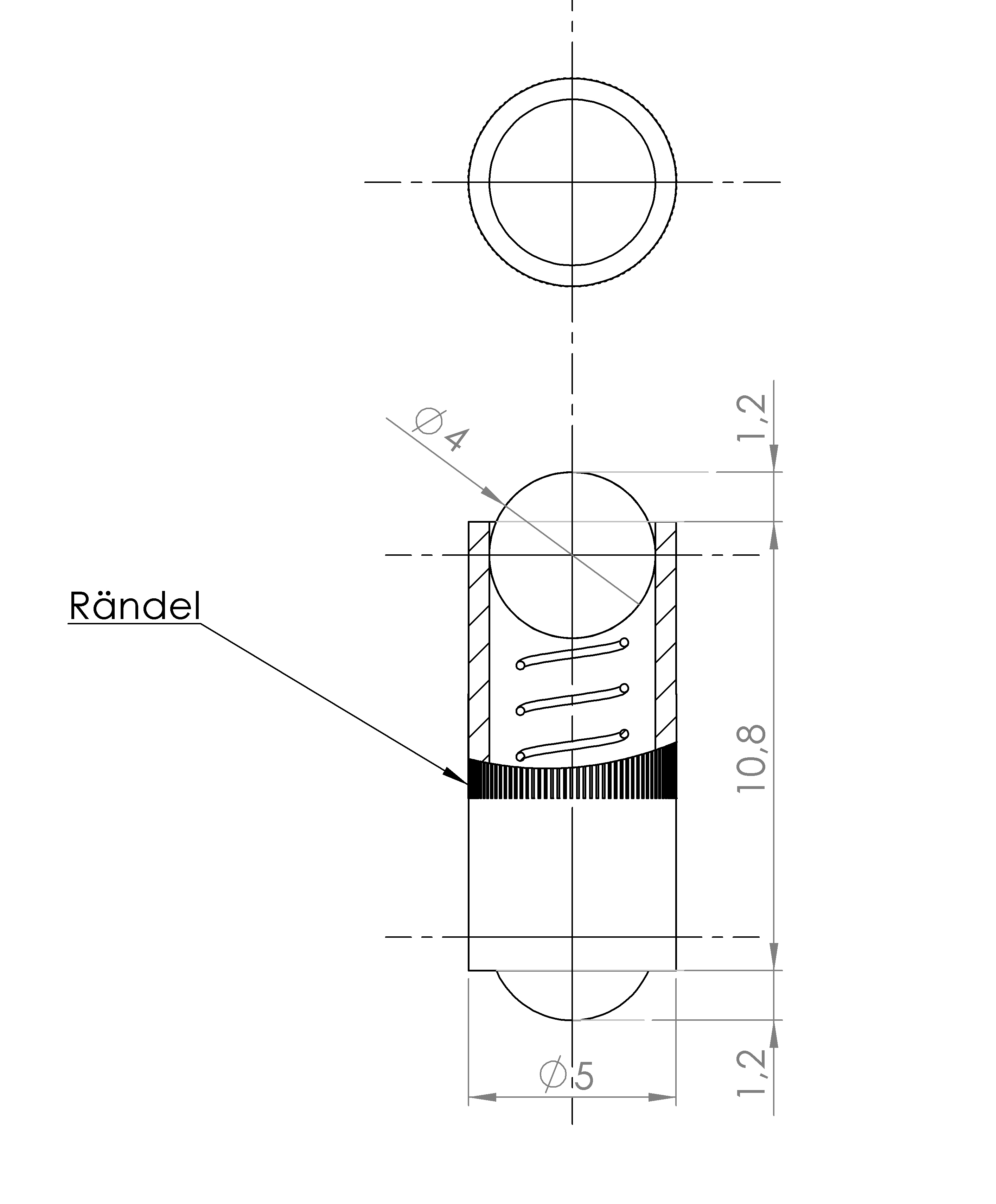

| 2106.5219 | Stainless steel bright | 4 | 1,2 | brass | 10,8 | 5 | 3,5-8 | |
| 2106.5220 | Stainless steel bright | 6,5 | 2,1 | brass | 18 | 8 | 6-15 | |
| 2106.12656 | Stainless steel bright | 5 | 1,6 | brass | 12,6 | 6 | 3,5-10,5 |
